This case study shows a completed prefabricated modular container bar for a beachfront hospitality operator. The structure was manufactured and delivered as a flat-pack container building, assembled on-site in a matter of days rather than months.
The finished beach-side container bar seats approximately 60 guests across an open dining hall, a fully fitted bar with a bottle display, a service prep room, and an integrated restroom.
| Project Type | Beach Container Bar |
|---|---|
| End User | Coastal Hospitality Operator |
| Delivery Site | Beachfront / Coastal Outdoor Venue |
| Structure Type | Flat-Pack Modular Container Building |
| Total Area | Approx. 71.6 m² (11,910 mm × 6,010 mm) |
The client's objective was to create a commercial space that could be rapidly deployed and generate revenue quickly. Every specific requirement the client put forward was directly linked to a clear business need.
Based on the client's requirements, DXH House uses modular construction to create a flat-pack container structure composed of four container units. Each unit measures 5,950 mm × 3,000 mm; the four units are arranged in a 2 × 2 grid, collectively forming this seaside container bar with overall dimensions of 11,910 mm × 6,010 mm. This solution directly addresses every specific requirement of the client:

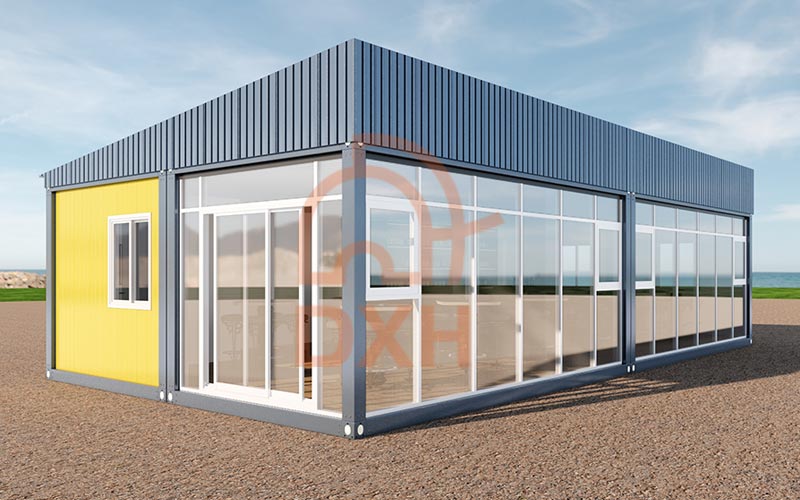

The yellow corrugated steel panels on the end walls of the non-glass facades were specifically chosen by the client as their brand signature color. This striking, vibrant hue complements the relaxed and pleasant seaside leisure environment. Meanwhile, the gray corrugated roof fascia boards and structural columns balance the overall color scheme, lending the building a distinct commercial.
If you are considering setting up a pop-up store in the near future, please visit our Contact Us page to send us your specific requirements (purpose, floor area, capacity, layout, etc.). We will design a floor plan for your container pop-up store and provide a quote based on your needs.

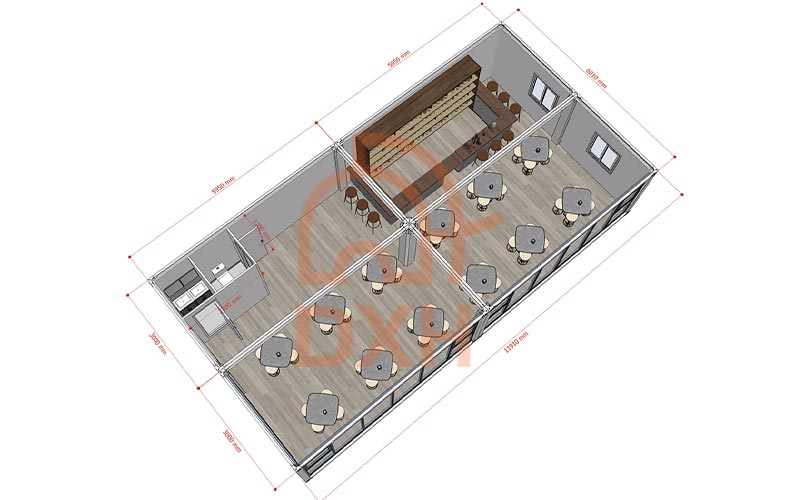

The dimensional data in the container bar floor plan below reflects the final approved layout. The 2 × 2 bay arrangement creates a clear functional zoning without requiring interior partition walls in the guest-facing area, preserving the open, airy quality the client required.
| Zone | Position | Function | Area |
|---|---|---|---|
| Guest-Facing | Rear-Left Bay (5,950 × 3,000 mm) | Bar counter, L-shaped with back-bar bottle display; bar stool seating along counter | ~17.9 m² |
| Guest-Facing | Rear-Right Bay (5,950 × 3,000 mm) | Open dining — 3 bistro tables, 4 seats each; clear access to restroom module | ~17.9 m² |
| Guest-Facing | Front-Left Bay (5,950 × 3,000 mm) | Open dining — 3 bistro tables, 4 seats each | ~17.9 m² |
| Guest-Facing | Front-Right Bay (5,950 × 3,000 mm) | Open dining — 3 bistro tables, 4 seats each; glazed corner for natural light | ~17.9 m² |
| Back-of-House | Within Rear-Right Bay | Restroom enclosure: 2,200 mm wide × 1,100 mm deep; WC and washbasin | ~2.4 m² |
The restroom module sits in the corner of the rear-right bay, only a portion of the footprint. The remainder stays open as additional dining floor area. This approach avoids dedicating an entire bay to a single low-revenue function.
The bar counter sits opposite the open dining area, so bar staff have clear across the full guest seating zone — important for service quality in a venue without table service.
All materials were specified for commercial hospitality use in a coastal environment. The table below reflects the final confirmed specification for this project.
| Primary Structure | Hot-dip steel frame; bolted flat-pack connection system |
|---|---|

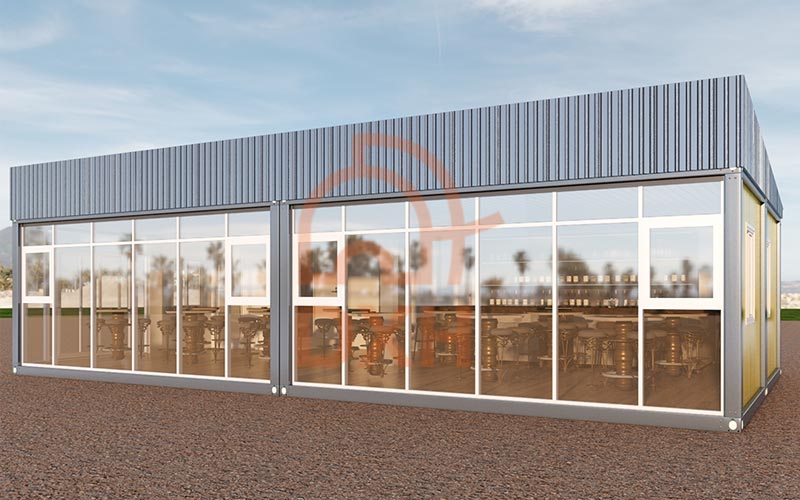

| Exterior — Long Walls | Full-height aluminum curtain wall glazing system |
| Exterior — End Walls | Pre-treated corrugated steel panel, RAL Yellow (client selected) |
| Roof Fascia & Columns | Powder-coated steel, Charcoal Grey |
| Roofing | Low-slope color deck, single-layer with concealed fasteners |
| Glazing — Entry Doors | Large-format sliding glass doors, aluminum frame |
| Interior Flooring | Wood-finish composite plank, light tone |
| Restroom | WC, washbasin, ventilation |
| Electrical | Pre-wired |
One of the practical advantages of a flat-pack modular system is that factory production and site preparation run in parallel. By the time the structure arrived on-site, the foundation was ready to receive it.
Once the client approves the dimensioned floor plans and the list of material specifications, the project enters the factory manufacturing phase. All steel structural frames, exterior wall panels, curtain wall components, and prefabricated modules (such as bar counters and bathroom partitions) are manufactured in a controlled environment. All components undergo rigorous quality inspections before leaving the factory.
The client prepares the site and the foundation. Foundation construction proceeds in parallel with factory production, thereby eliminating waiting times caused by the handover between processes.
Modules and components are delivered to the site in flat-pack (flat-packed) units. The installation team is responsible for assembling the steel structural frames using bolted connections, laying the floor decking, erecting the wall cladding panels, and installing the glass curtain wall and sliding door assemblies.
Once the main structure is installed, the team connects power to the main distribution panel, connects plumbing and drainage lines to restrooms and bar service areas, and completes final electrical installations (such as lighting fixtures and power outlets for POS terminals).
The total construction period from site entry to operational launch is significantly shorter than that of traditional construction methods. Modular container shops are an ideal solution for first-time entrepreneurs or venues hosting large-scale events. Their flexibility and portability make them particularly well-suited for seasonal events, concerts, or outdoor camping. Please contact our sales team to obtain floor plans and pricing details for the container shop of your choice.
This seaside container bar project was delivered using a modular flat-pack construction system, with the main structure and basic interior finishes already completed; final plumbing and electrical connections were carried out on-site. This project clearly demonstrates that prefabricated modular construction not only offers durability comparable to traditional housing but also significantly shortens construction timelines and minimizes disruption to the surrounding environment.
If you are planning any of the following types of projects, this modular container solution can also be applied to:
DXH House is a manufacturer and supplier of prefabricated modular building systems, specializing in flat-pack container structures for commercial, hospitality, and industrial applications. Our production facilities produce structures to CE, ISO, and relevant local building standard certifications.
We work with clients at every stage — from initial concept layouts and 3D visualization through to factory production, logistics, and on-site assembly support. Every project is documented with dimensioned floor plans before production.
To discuss your project, contact our sales team directly to get detailed container bar quotation information.
Yes. The functions of each container unit can be swapped or combined: the kitchen module, bar counter, retail area, or additional restroom can replace any container unit. Before production begins, DXH House will provide drawings with detailed dimensional annotations for your review and approval.
Both are possible. For permanent sites, the modular units are bolted to a concrete foundation slab and connected to permanent municipal utility networks—ultimately forming a permanent commercial building. For seasonal operations or applications requiring relocation, the modular units can be installed on adjustable leveling pads and can be disconnected and dismantled as needed.
Yes. The color of the exterior panels will be finalized during the order confirmation stage. We offer a wide selection of RAL colors and standard shades; custom colors are available, provided the minimum order quantity is met. Additionally, if your design requires a completely different aesthetic, we can replace the corrugated steel panels with alternative exterior cladding materials—such as fiber-cement or aluminum-plastic composite panels.
Please contact DXH House at www.dxhhouse.com and provide your site location, intended use, approximate floor area, and any specific design requirements (such as the scope of the glass curtain wall, utility connection needs, and exterior cladding preferences). Our project team will then contact you to provide layout recommendations and a detailed itemized quotation. Initial consultations and layout reviews are provided free of charge.
